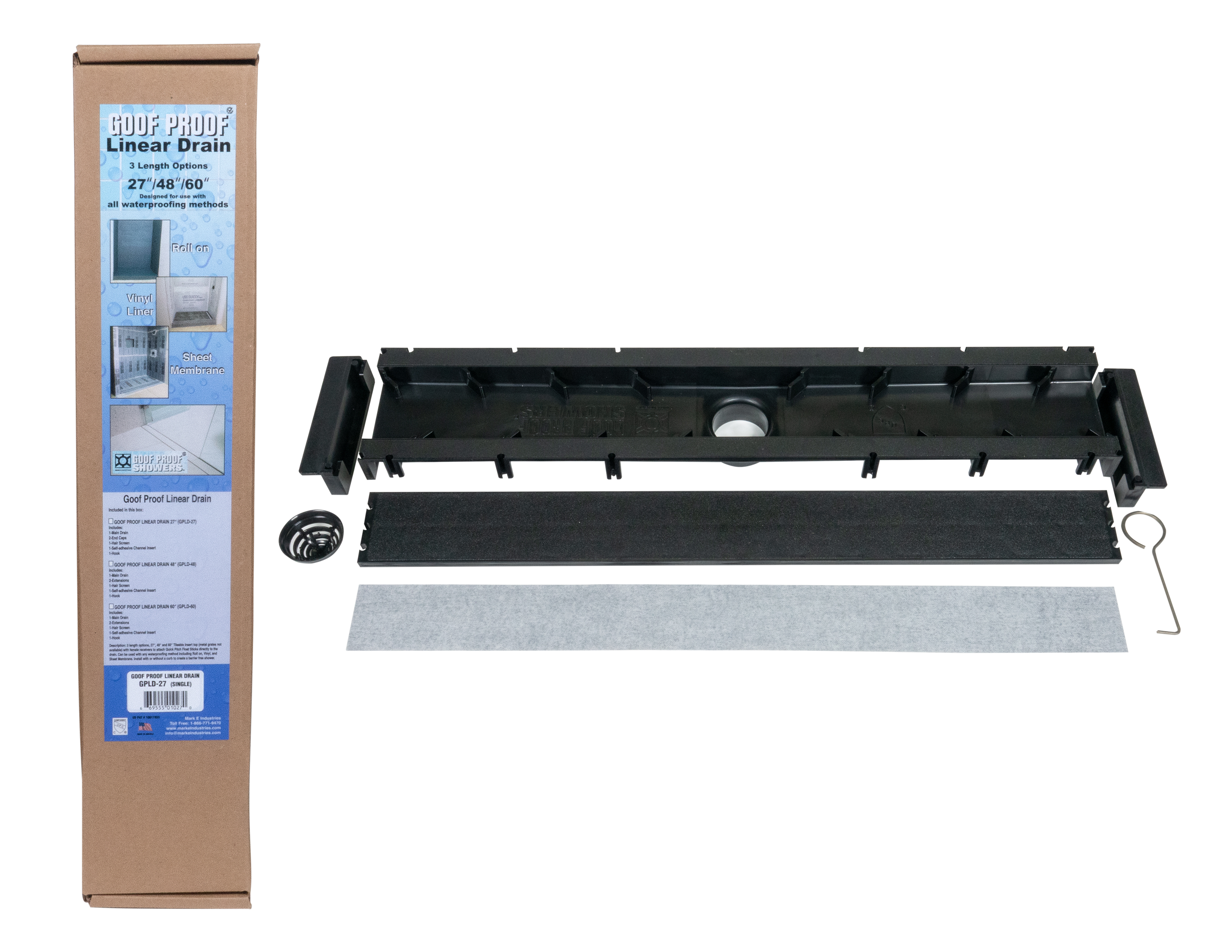

Goof Proof Linear Drain

View All Installation Instructions

Customizable to 6 length combinations ranging from 27" to 60" Tileable insert top (no metal grates available) with female receivers to attach Quick Pitch Float Sticks directly to the drain. Can be used with any waterproofing method including Roll on, Vinyl, and Sheet Membrane. Install with or without a curb to create a barrier free shower.


GPLD/26/60 :

1 Main Drain section w/insert, 2 end caps. 2-15.5" extensions w/ inserts, 2- 9" extensions w/ inserts, 1 Drain Flange Assembly with non-threaded clamping ring, 1 coupling,1 hair screen 1 insert removal tool, 1 disposable1/16" square notched trowel, 1 drain collar GPLDC-69"x15", 1 Multipurpose Sealant GPS-2000 Cartridge and 1- 4oz can PVC/ABS Pipe glue GPMPSC

Goof Proof Square Drain

4" square shower drain / Tileable insert top (metal grates not available) with female receivers to attach Quick Pitch Float Sticks directly to the drain. Can be used with all liner systems Roll on, Vinyl, and Sheet Membrane. GPSD :

Tileable Square Drain-GPSD 1 Drain Flange Assembly with threaded clamping ring. 1 threaded riser and insert, 1 hair screen and 1 insert removal tool.

3PeiceShowDrain

Piece Shower Drains

Low profile, PVC solvent weld drains for 2” over or 3” inside DWV waste pipe connections. 2” IPS threaded adjustable risers with heavy duty chromed brass strainers available in both round and square styles. Weep holes in the clamping flange allow for proper drainage and is secured with 4 stainless steel bolts into brass inserts. Integrated water test plug included.

ThreadedDrains1 ThreadedDrains2
  • Adaptors used in Hot Mop shower waterproofing applications
  • The 2" ID Threaded Ring will accommodate most drains and standard threaded drain risers including Goof Proof Square Drain, Ebbe, Sioux Chief, Oatey, Zurn, ProFlo, Plumbing Products, Jones Stephens, Frank Pattern and more
  • The 2" ID Non-Threaded Ring is for use with Goof Proof Linear Drains plus many other linear drains
  • 6" OD / 0.60 thickness
  • Heavy duty PPS material
  • Low profile
  • Integrated weep holes>
  • Rated to 500 degrees


You may contact us if you have and questions about our shower installation products.
